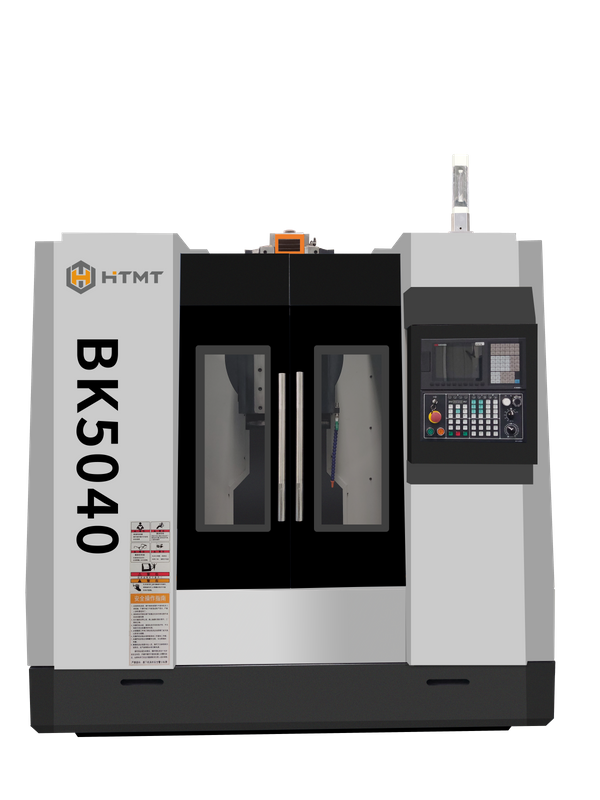

BK5040
HantaiJialink
主要技术参数 | specification | 单位 | BK5040 |
滑枕最大插削长度 | Ram maximum slotting length | mm | 400 |
滑枕调节行程 | Ram stroke adjustment | mm | 300 |
滑枕每分钟运动资料 | Ram movenent times | N/min | 20-70 |
| 滑枕倾斜 | The slider is tilted. | ° | ±10° |
| 最大切削力 | Maximum cutting force | n | 12000 |
| 刀柄直径 | Diameter of the knife handle | mm | ⌀60 |
工作台尺寸 | Work table size | mm | 500X500 |
工作台行程（X、Y） | Trael of table(X,Y) | mm | 370X540 |
刀头支承孔轴线至立柱前臂的距离 | The knife head suppoting hole axis to column forarm distance | mm | 625 |
滑架底端至工作台面的距离 | The distance from the bottom end of the slide frame to the worktable surface | mm | 660 |
X向电机扭矩 | X to the motor torque | N.M | 10 |
Y向电机扭矩 | Y to the motor torque | N.M | 15 |
快速移动 | Fast moving | X(m/min) Y(m/min) | 5 5 |
滚珠丝杠X | Ball screw X | FFZD4010-5/P4 | |
滚珠丝杠Y | Ball screw Y | FFZD4010-5/P4 | |
主电机功率 | The main motor power | kw | 5.5 |
机床重量 | Machine weight | kg | 5600 |
| 机床尺寸 | Machine tool dimensions | mm | 2650X2100X2600 |
| 包装尺寸 | Packaging size | mm | 2800X2300X2800 |
