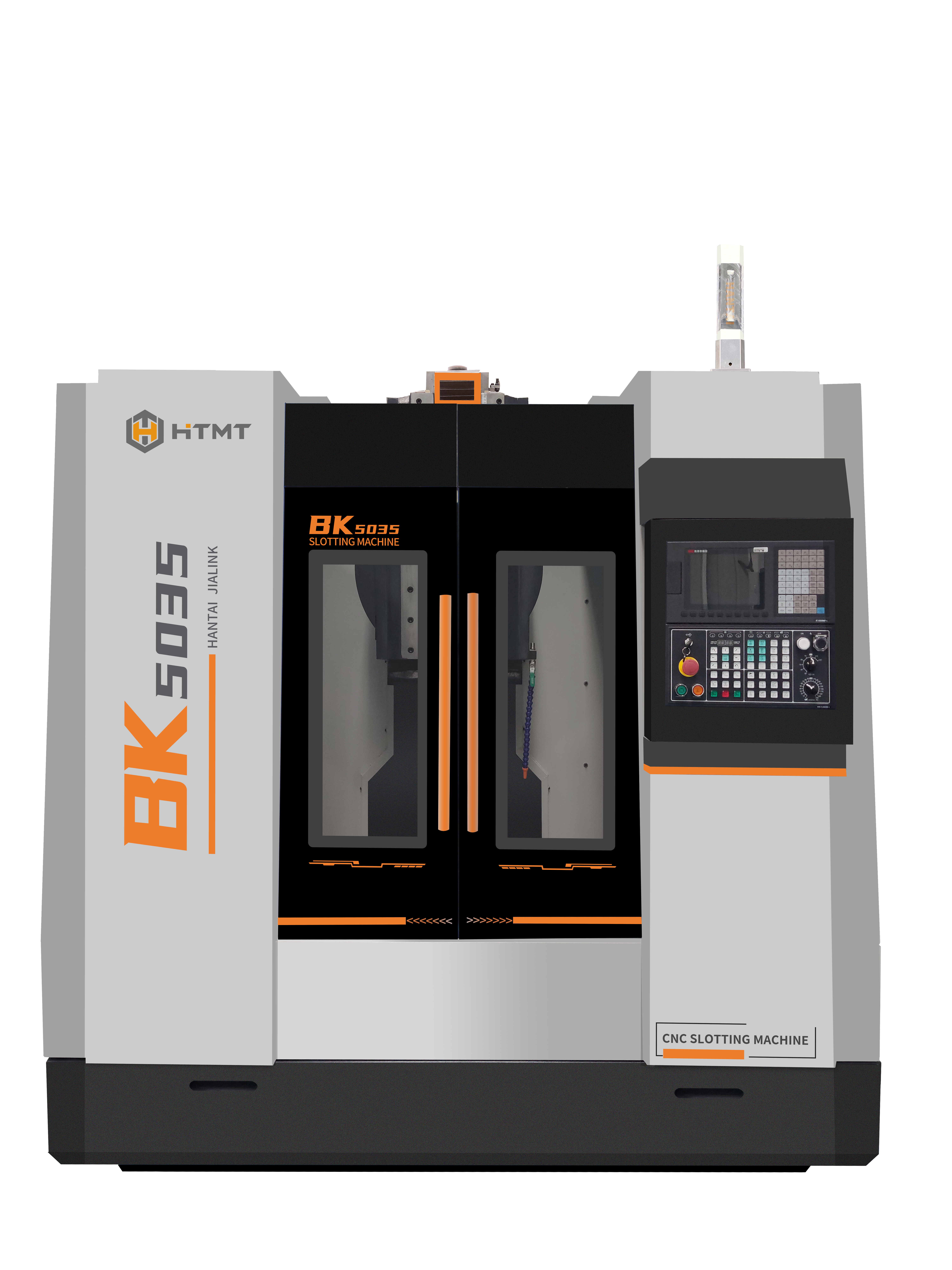

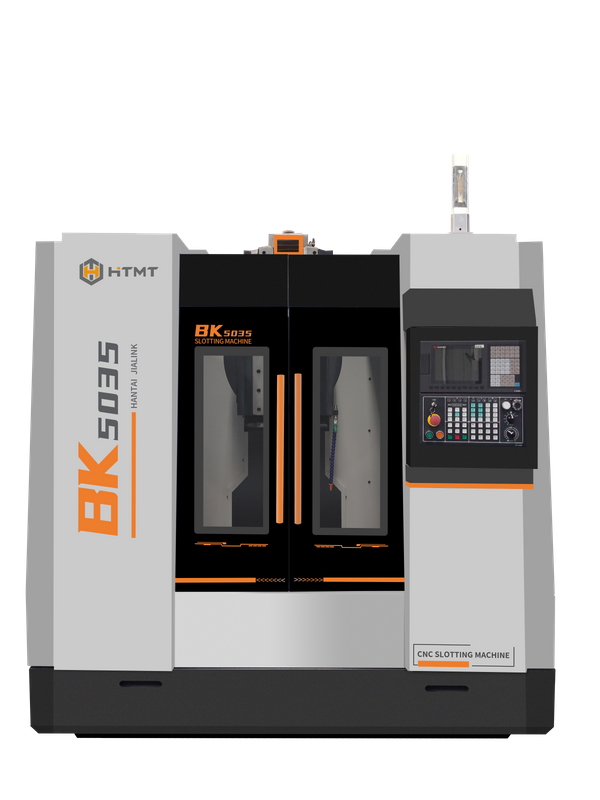

BK5035数控插床

滑枕最大插削长度

Ram maximum slotting length

mm

350

滑枕调节行程

Ram stroke adjustment

mm

300

滑枕每分钟运动资料

Ram movenent times

N/min

0-100

工作台尺寸

Work table size

mm

750X510

工作台行程（X、Y）

Trael of table(X,Y)

mm

320X400

刀头支承孔轴线至立柱前臂的距离

The knife head suppoting hole axis to column forarm distance

mm

625

滑架底端至工作台面的距离

The distance from the bottom end of the slide frame to the worktable surface

mm

680(Standard)

830(Raise)

X向电机扭矩

X to the motor torque

N.M

10

Y向电机扭矩

Y to the motor torque

N.M

15

快速移动

Fast moving

X(m/min)

Y(m/min)

5

5

滚珠丝杠X

Ball screw X

FFZD4010-3/P4

滚珠丝杠Y

Ball screw Y

FFZD4010-3/P4

主电机功率

The main motor power

kw

5.5

机床重量

Machine weight

kg

4750
