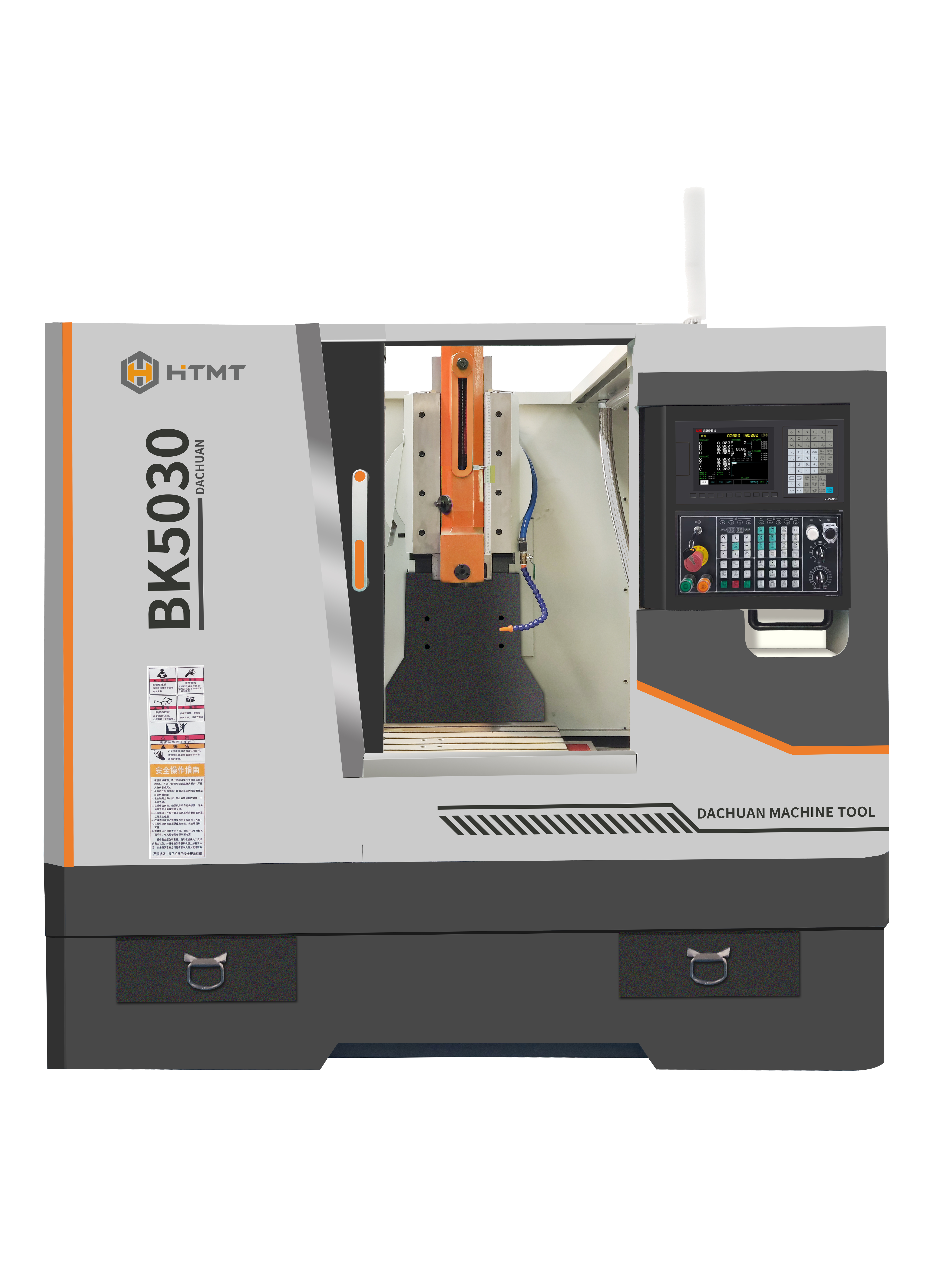

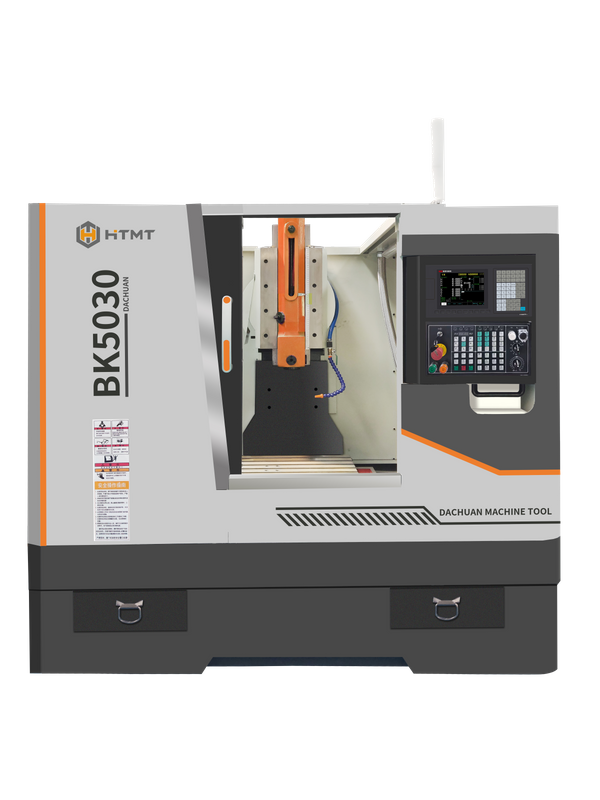

BK5030
HantaiJialink
主要技术参数 | specification | 单位 | BK5030 |
滑枕最大插削长度 | Ram maximum slotting length | mm | 300 |
滑枕调节行程 | Ram stroke adjustment | mm | 260 |
滑枕每分钟运动资料 | Ram movenent times | N/min | 30-120 |
工作台尺寸 | Work table size | mm | 550X410 |
工作台行程（X、Y） | Trael of table(X,Y) | mm | 250X300 |
刀头支承孔轴线至立柱前臂的距离 | The knife head suppoting hole axis to column forarm distance | mm | 485 |
滑架底端至工作台面的距离 | The distance from the bottom end of the slide frame to the worktable surface | mm | 540(Standard) 690(Raise) |
X向电机扭矩 | X to the motor torque | N.M | 6 |
Y向电机扭矩 | Y to the motor torque | N.M | 6 |
快速移动 | Fast moving | X(m/min) Y(m/min) | 5 5 |
滚珠丝杠X | Ball screw X | FFZD3205-3/P4 | |
滚珠丝杠Y | Ball screw Y | FFZD3205-3/P4 | |
主电机功率 | The main motor power | kw | 3.7 |
机床重量 | Machine weight | kg | 2650 |
