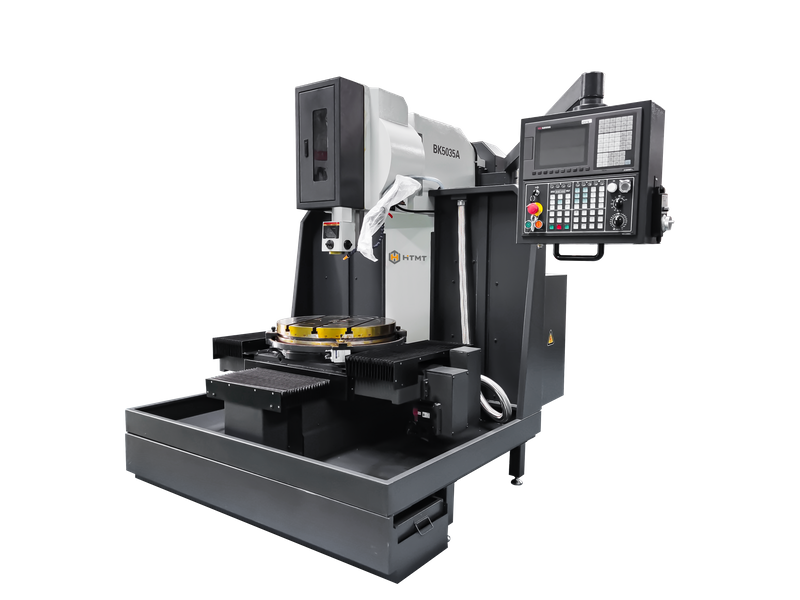

BK5035A数控插床

The maximum insertion length of the ram

mm

350

The ram adjusts the travel

mm

300

The number of times the pillow moves

n/min

0-90

Workbench size

mm

Φ630

Workbench stroke（X/Y）

mm

350*400

Diameter of the knife handle

mm

Φ40

The distance from the axis of the tool head support hole to the forearm of the column

mm

625

The distance from the sliding frame section to the worktable surface

mm

580

Torque of the rotary table motor

N.M

15

Center T-slot width of the table

mm

3*18*160

X-axis motor torque
Y-axis motor torque

N.M

7.7

Fast movement（X）
Fast movement（Y）

m/min

12

Ball screw(X)

FFZD3206

Ball screw(Y)

FFZD4006

Main motor power

Kw

3.7

Weight (Net weight/gross weight)

Kg

3600/3750

Machine tool dimensions

mm

2600*2000*2500
