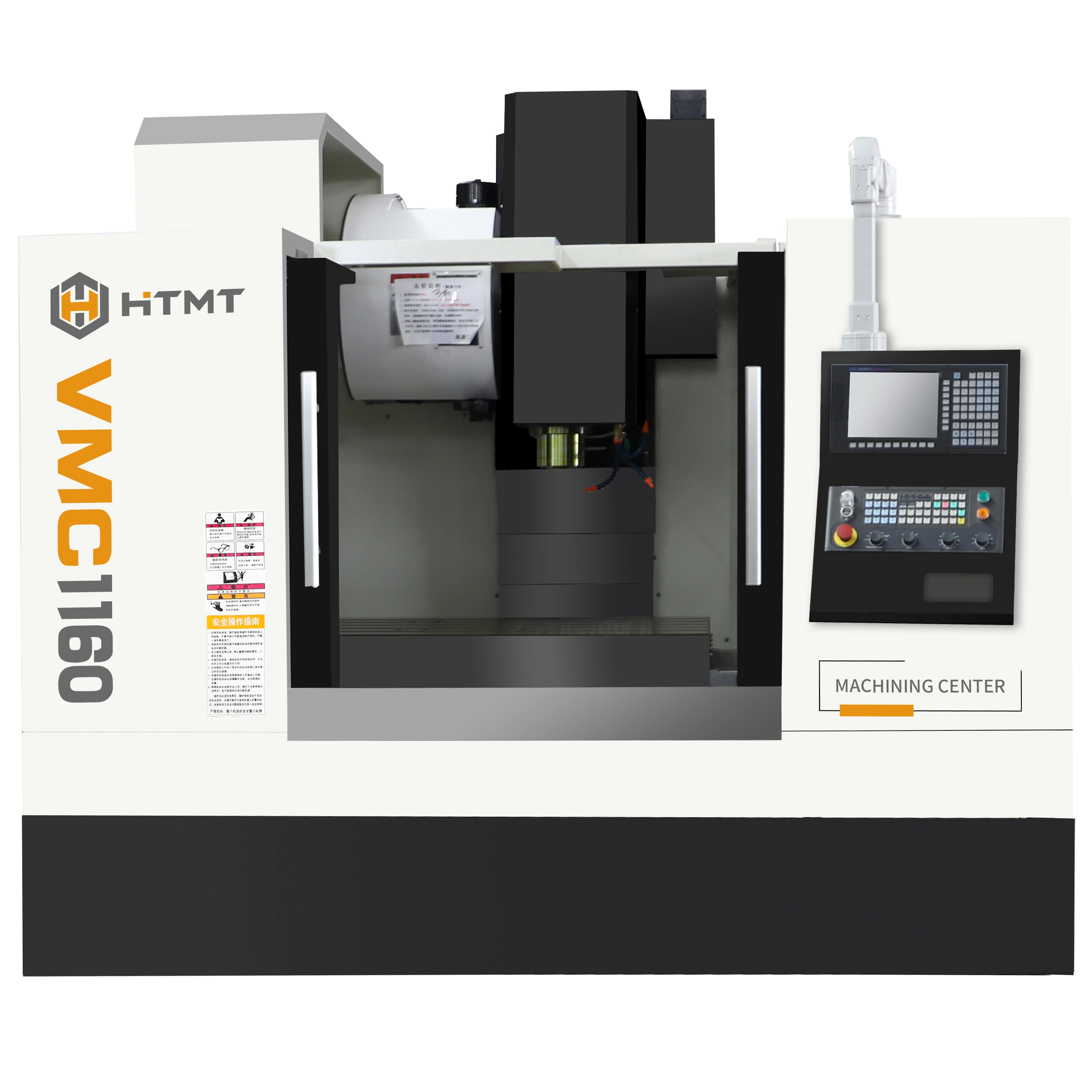

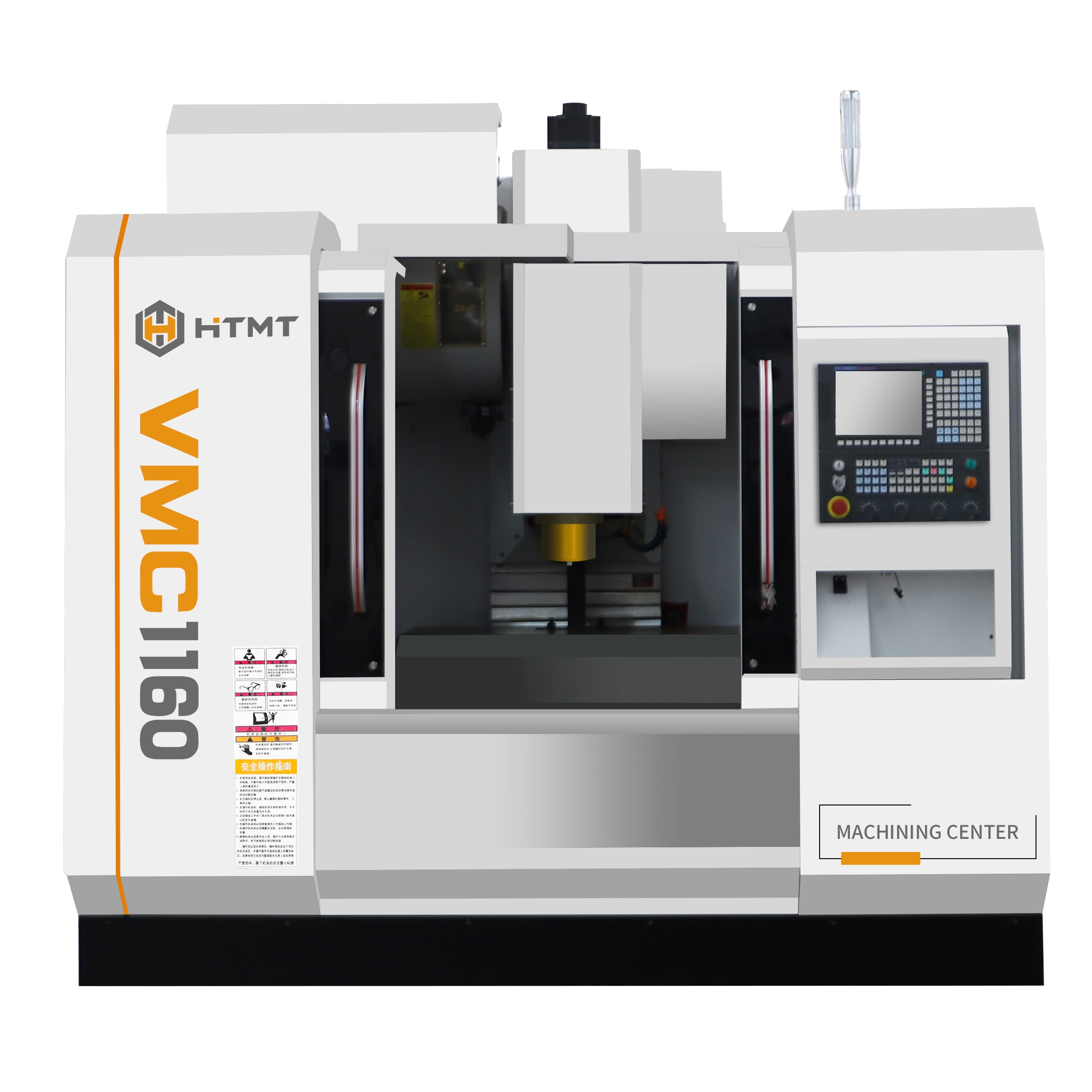

立式加工中心VMC1160

Workbench size

mm

1200X600

The travel of the X, Y and Z axes

mm

1100/600/600

Distance from spindle end to worktable

mm

120-720

Distance from spindle center to column

mm

650

Maximum load of workbench

KG

800

Workbench T-slot

mm

5-18X100

X/Y/Z axis rapid feed

m/min

36/36/24

X/Y/Z rail width specifications

mm

RGH45/45/45

X/Y/Z screw specifications

mm

φ4012

Repeat positioning accuracy

mm

±0.003/300

Spindle specifications

BT40-8000

Disc tool magazine

pcs

24T

Controller system

/

X/Y/Z axis motor power

N.M

Spindle motor power

Kw

Machine weight approx.

KG

6200

Machine size

mm

2800X2450X2650
