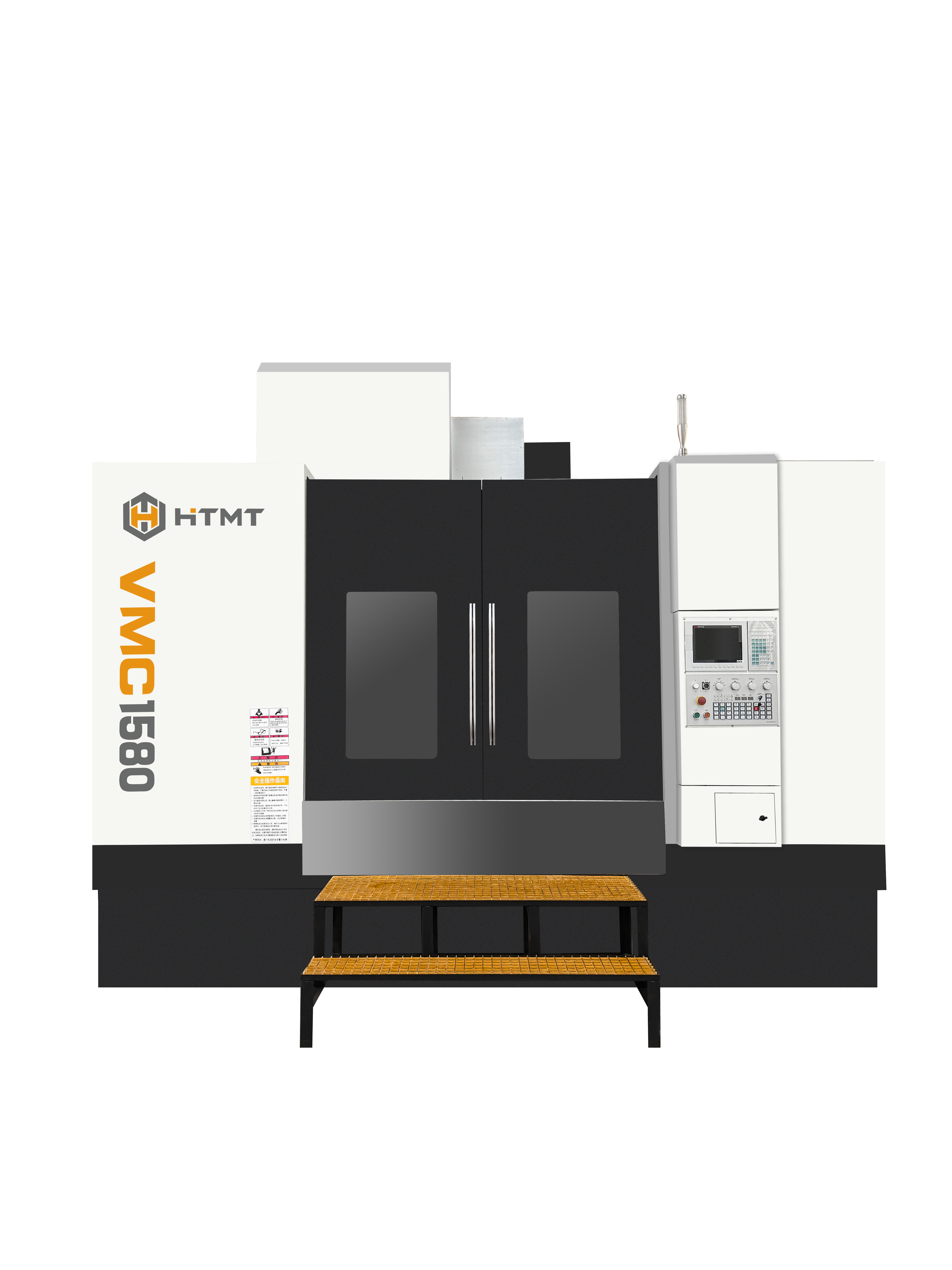

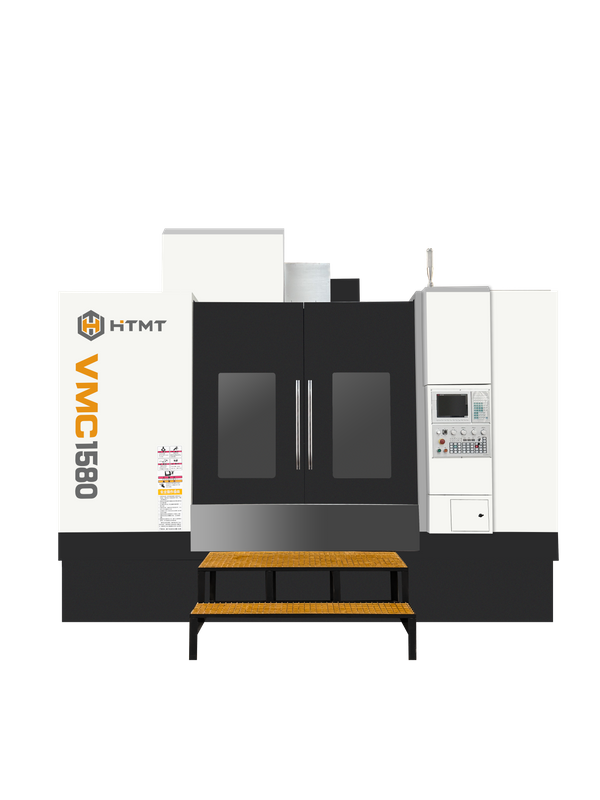

立式加工中心VMC1580

Workbench size

mm

1700X800

The travel of the X, Y and Z axes

mm

1500/800/700

Distance from spindle end to worktable

mm

130-830

Distance from spindle center to column

mm

810

Maximum load of workbench

KG

1500

Workbench T-slot

mm

5-18

X/Y/Z axis rapid feed

m/min

24/24/18

X/Y/Z rail width specifications

mm

RGH55/45*4

Z：Hard rail

Repeat positioning accuracy

mm

±0.006/300

Spindle specifications

BT50-6000

Disc tool magazine

pcs

24T

Controller system

/

X/Y/Z axis motor power

N.M

Spindle motor power

Kw

Machine weight approx.

KG

11000

Machine size

mm

4000X3100X3300
