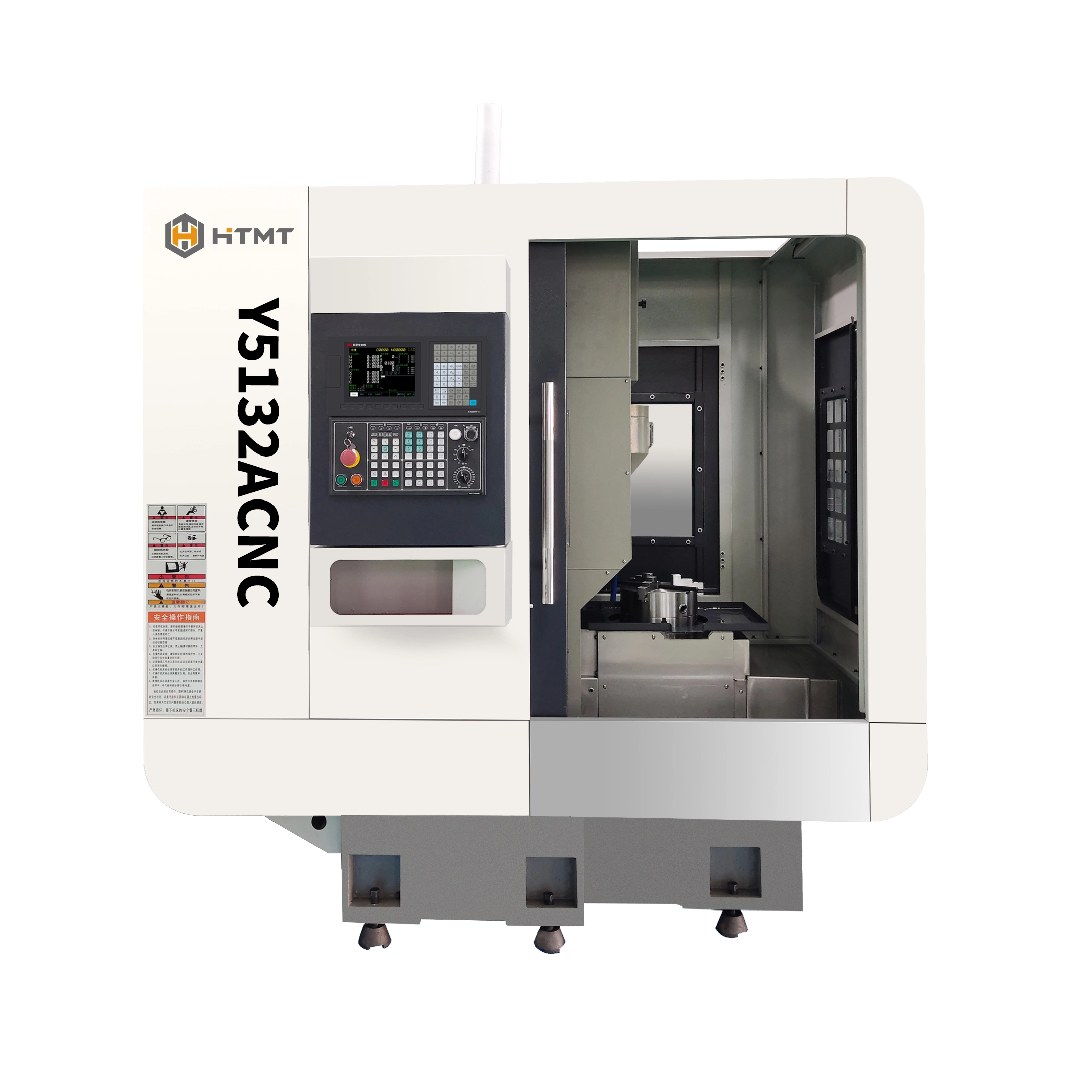

Y5132A 数控插齿机

The Y5132A CNC gear shaper machine can be used for rough and finish machining of internal and external cylindrical gears, double gears and multi-link gears. This machine is a standardized product of our company and is now widely used in various types of disk gears, shaft gears, etc. It is particularly suitable for large-scale production in the manufacturing industries of construction machinery, mining machinery, automobiles, agricultural machinery and aviation. It can also be used for single-piece or small-batch production in manufacturing. If special attachments are installed on the machine, it can be used to process helical gears, racks, sectors, cams, etc.

状态：

数量：



询价加入询价篮

型号：
Y5132A CNC
产品品牌：
HantaiJialink

产品描述

PROJECT	UNIT	PARAMETERS
Maximum external tooth diameter of the workpiece	mm	320
Maximum internal tooth diameter of the workpiece	mm	220+D
Maximum modulus	mm	6
Maximum tooth width	mm	80
Maximum stroke of the tool	mm	90
Maximum stroke count of the main shaft	Str/max	500
Main shaft diameter	mm	80
Maximum cutting allowance of the tool	mm	0.38
Diameter of the workbench surface	mm	320
Tool installation diameter	mm	20/31.743/44.45mm Mohs2#/3#
The distance from the centerline of the cutting tool to the centerline of the worktable	mm	-115~270
The distance from the tool installation end face to the worktable surface	mm	100-215
Total power of the machine tool	Kw	11.5
Approximate weight	KG	4500/4700
Machine tool dimensions	mm	227016802150
Packaging size	mm	242017802350

下载参数

Y5132ACNC.pdf
